JH490

Product Image

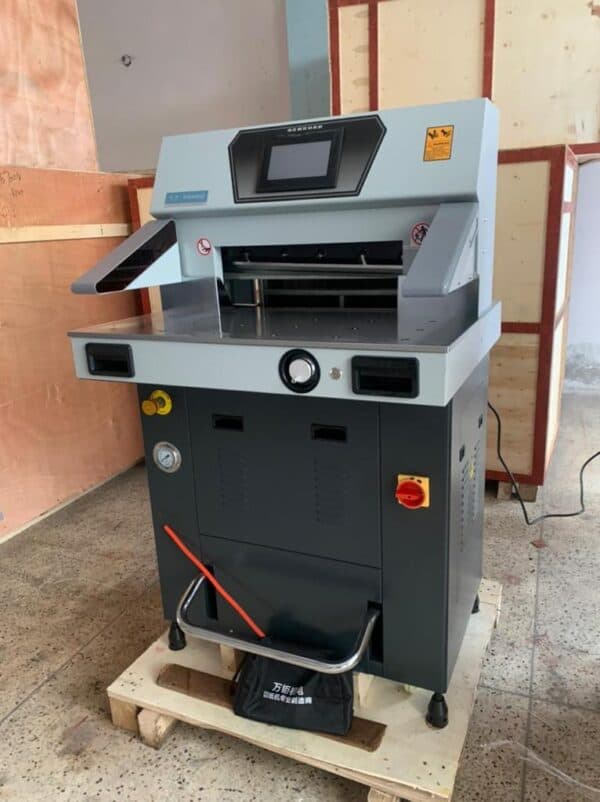

DOUBLE HYDRAULIC PAPER CUTTING MACHINE 19.3inch

Good Quality touch screen

Infrared grating safe

Mechanical foot Pedal

Front and back plate with air ball

Double guide device: the paper pusher adopts imported double linear guide and roller ball screw , which can prolong the machine use life , and can bear the high speed paper delivering

Whole heavy chasis make machine durable

Heavy duty design with thick steel plate.

Main Features

http://jindaloffset.com/wp-content/uploads/2023/03/WhatsApp-Video-2023-01-25-at-13.02.54.mp4

Specifications

TECHNICAL SPECIFICATIONS

Max Cut Size490mm
Min Cut Size30mm
Max Cut Height80mm
Cutting Precision±0.3mm
Mode of ClampHydraulic Mechanical
Mode of CuttingHydraulic
Mode of PushingMotor pushing
Program Program control(100*7 programs)
Display 7 inches
Power AC 220V ±10% , 50Hz
Gross Weight425 Kg
